INSTALLATION INSTRUCTIONS

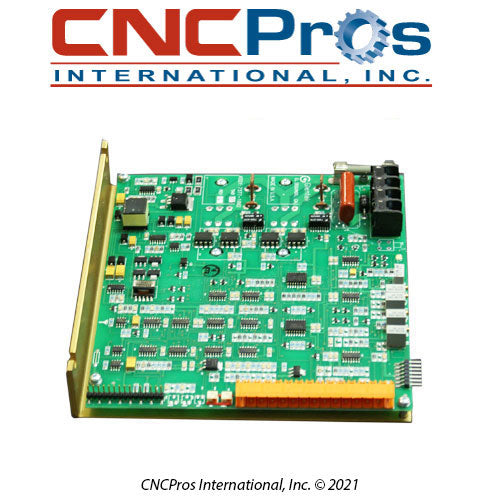

These Glentek DC Brush Amplifiers are critical for motion control in your Fadal CNC machine. Designed to be a direct replacement, they are compatible with VMC15s, 2216s, 3016s, and some VMC 4020s, as well as various DC rotary and smaller machines.

Technical Specifications & Compatibility

• CNCPros Part Number: AMP-0006
• Glentek Part Number: 7377 or SMA7377
• Output: 15 AMP Continuous, 30 AMP Peak

Usage: These amplifiers are suitable for all XYZAB axes on VMC 15 machines that use the smaller amplifier footprint with a WAGO connector.

Replacement: The AMP-0006 is a suitable replacement for the AMC AMP-0014 amplifier and is compatible with the following DC Brush Motors:

• MTR-0002
• MTR-0003

Complete Amplifier Support Solution

When you purchase an amplifier from CNCPros, you get a full support solution, not just a part.

Professional Diagnosis: Our technical support team can help you determine if your amplifier truly needs to be replaced or if there are other issues at play.

Instruction Manual: We provide a comprehensive manual with simple, step-by-step installation instructions. The document also includes preventative maintenance tips to help you avoid future failures and extend the life of your Fadal parts.

Amplifier Support Service: Our team has an extensive Fadal engineering background and works directly with Glentek engineers. We'll provide you with expert product support during and after installation.

Warranty: All new amplifiers come with a one-year warranty, providing you with peace of mind.
