ELE-1072: MONITOR: MP; LCD MONO; 12.5"

Fadal MP Pendant Display Upgrade: The Preferred Choice for Fadal Owners

CNCPros is the preferred vendor for Fadal owners seeking to modernize their control systems. The ELE-1072, our 12.1" MP Pendant with Color VGA Kit, is a complete solution designed to transform the antiquated 10-pin monochrome VGA interface into a dynamic, full-color display. This upgrade is a critical step in enhancing the operator interface, improving visibility, and extending the operational life of your control.

Advanced Technical Features and System Integration

This kit is engineered to provide a seamless and significant upgrade by integrating several key technical components:

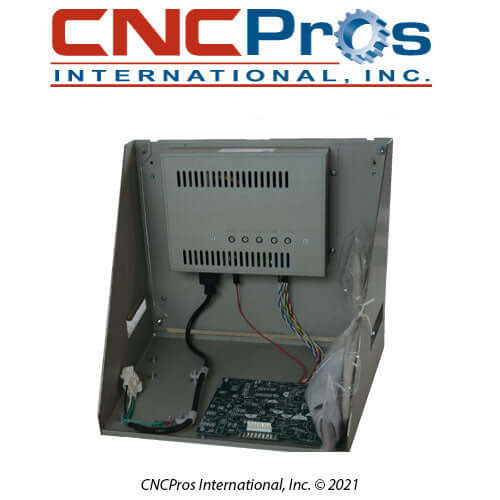

• Vibrant Color Conversion: The included PCB-0214 Color Board is the core of this upgrade. It is a purpose-built interface that translates the 10-pin monochrome VGA signal into a full-color spectrum, directly enhancing the visibility of on-screen data and graphics.

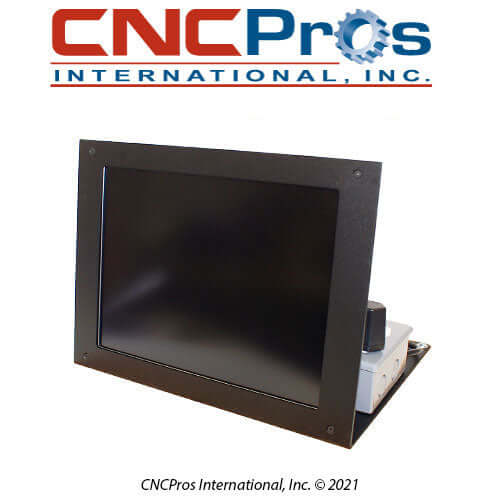

• High-Resolution Display: The 12.1" LCD panel provides superior visual fidelity, ensuring every detail of the control interface is rendered with exceptional clarity. The anti-glare coating is specifically designed to mitigate reflections, preserving screen readability and reducing operator eye strain in a wide range of shop lighting conditions.
• Enhanced Mechanical Design: The display is housed within a sleek, flat molded bezel, which not only provides a professional aesthetic but also adds an extra layer of durability and protection against environmental factors. The kit is designed for a direct-fit, four-screw installation, eliminating the need for complex mounting trays or modifications.

The CNCPros Advantage: Preferred by Fadal Owners

Fadal owners consistently choose CNCPros because we combine advanced component design with unparalleled customer support.

• Versatile Connectivity: The display offers both BNC and VGA connectivity, ensuring compatibility with various Fadal control configurations and simplifying the integration process.
• Comprehensive Two-Year Warranty: We back our display upgrade with a comprehensive 2-year warranty, providing protection against unexpected issues and demonstrating our unwavering confidence in the product's quality and longevity.
• Remote Control Configuration: The included remote control allows for effortless customization of display settings, giving operators the ability to fine-tune the display's parameters without needing to access the control panel manually.
• Expert Support: Our knowledgeable support team is dedicated to ensuring a smooth experience. From pre-purchase inquiries to technical guidance and installation support, we are committed to helping you successfully modernize your Fadal control.

To correctly identify the monitor part number for your Fadal machine, please use this guide to verify the video signal and power connections.

• CNC88 Control: The required part number is ELE-0190.
• MP Pendant Control: The likely part number is ELE-1072.
• 32MP Control: The typical part number is ELE-1073.

Before placing an order, it is crucial to review the accompanying visual document to ensure you select the correct part.

VERIFYING MONITOR CONNECTIONS
