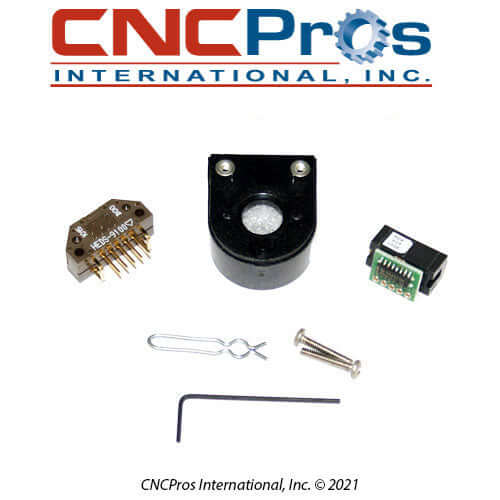

ENC-0007 FADAL SPINDLE ENCODER. US DIGITAL

Technical Overview: The US Digital Spindle Encoder Kit (ENC-0007)

Think of your Fadal spindle motor as a high-speed engine, and the ENC-0007 Spindle Encoder Kit as its tachometer and position sensor. Without the precise, real-time data provided by this encoder, your machine’s control system would be effectively "blind" to the spindle's actual rotational velocity and orientation.

The ENC-0007 is a genuine US Digital optical encoder kit specifically engineered for Fadal spindle motors. It is the high-resolution feedback mechanism required for critical machine operations, including rigid tapping, spindle orientation (M19), and precise feed-per-revolution cutting.

Technical Functionality: Optical Precision

The ENC-0007 is not a simple sensor; it is a sophisticated optical feedback device that translates rotational motion into high-frequency digital pulses.

• High-Resolution Feedback: By utilizing optical sensing technology, this encoder provides the millisecond-perfect data required by the CPU to maintain commanded spindle speeds, even when the motor is under heavy cutting loads.
• The M19 Synchronization: This encoder is the heartbeat of your spindle orientation. During a tool change, the system relies on the ENC-0007 to identify the exact rotational degree of the spindle, ensuring the drive dog aligns perfectly with the tool changer mechanism every time.
• Closed-Loop Reliability: As a mission-critical part of the motor’s feedback loop, the ENC-0007 ensures that if the spindle experiences an unexpected speed deviation (slippage or torque stalls), the controller can immediately compensate or trigger an emergency stop to protect your part and tooling.

OEM Integrity and Compatibility

When it comes to spindle feedback, precision is non-negotiable. The ENC-0007 is an Original Equipment Manufacturer (OEM) part. This is not a "generic" sensor; it is the exact optical assembly specified by Fadal engineering.

• Seamless Integration: Using the OEM kit ensures that the disc-to-sensor air gap is perfectly calibrated. An improper gap on a non-OEM encoder can lead to "intermittent signal loss," causing the spindle to drift or triggering unpredictable "Spindle Fault" errors during sensitive operations.
• Compatibility: This kit is designed to provide a perfect, drop-in fit for the specific motor housings used throughout the Fadal product line, ensuring that the sensor remains shielded from the oil, coolant, and metallic debris common in the CNC environment.

The CNCPros International Advantage

At CNCPros International, we know that an encoder fault can stop your production line in its tracks. We provide more than just the part—we provide the peace of mind that comes from 28 years of Fadal expertise.

• Performance You Can Rely On: Every ENC-0007 we supply is sourced directly to meet Fadal's rigid standards for optical clarity and signal timing.
• Expert Integration Support: Encoder installation is a delicate, precision task. If you are experiencing "Spindle Faults" or inconsistent tool change orientation, our veteran technicians are available to help you diagnose whether the issue is the encoder itself or the alignment of the optical disc.
• 1 Year Reliability Guarantee: We stand behind the quality of this OEM component with a 1 year warranty, ensuring that your spindle feedback system is running at its absolute best.

Keep Your Spindle Spinning True

We maintain a ready-to-ship inventory of the ENC-0007 because we know that spindle feedback is the foundation of your machine's daily production.

Is your machine failing to orient for tool changes or experiencing spindle speed drift? Don't guess with your feedback loop. Reach out to our Order Desk at 1-208-888-9236. Let our specialists guide you through the process of verifying your motor configuration and ensure the ENC-0007 is the correct fix for your Fadal.

How to Check Your Fadal VMC Spindle Encoder

Here is a simple, step-by-step guide to checking if your Fadal VMC encoder is working correctly.

A key sign that an encoder is starting to fail is when you see the spindle RPM surge up and down and the load meter spike. This happens because the encoder is sending a bad signal to the machine control.

The best way to test the encoder is with a tool called an oscilloscope, which lets you see the electrical signals. A simple voltmeter can't show you all the details you need to know.

What the Encoder Does

The encoder sends three signals to the Fadal control:

• Channels A and B: These two signals tell the control how fast and in what direction the spindle is spinning.
• Index Pulse (Z Channel): This is a single signal that tells the control when the spindle has completed one full turn.

The Best Way to Test (Using an Oscilloscope)

1. Turn off the machine. Unplug the encoder's cable.
2. Connect the oscilloscope to the wires for Channels A and B.
3. Slowly turn the spindle by hand.
4. Look at the screen. You should see two clean, even square waves that look a little out of sync with each other. The voltage should be a steady 0V to 5V.

If you see no signal, the encoder is likely broken or has no power.

If the signals are messy or jumpy, the encoder is probably misaligned or damaged.

If the signals aren't properly "out of sync," the machine will get confused about the direction of rotation.

A Basic Test (Using a Voltmeter)

This method can tell you if the encoder is completely dead, but not if it has a smaller problem.

1. Turn off the machine.
2. Connect your voltmeter to the encoder's power wires to make sure it's getting 5V.
3. Connect the voltmeter to the signal wires for Channels A and B.
4. Slowly turn the spindle by hand. You should see the voltage go up and down. If you see no change, the encoder is likely broken.

Using the Fadal Machine's Own Tools

You can also use the Fadal control to help diagnose a problem:

• Check for alarms. Look for any alarms related to the spindle's speed or position.
• Try Spindle Orientation. In the MDI screen, run the command M19. If the spindle doesn't lock into position consistently, the encoder is probably the problem.
• Swap it out. If you have another encoder on a different axis that is the same part, you can temporarily swap them. If the problem moves with the encoder, you've found the issue.
