Product Overview

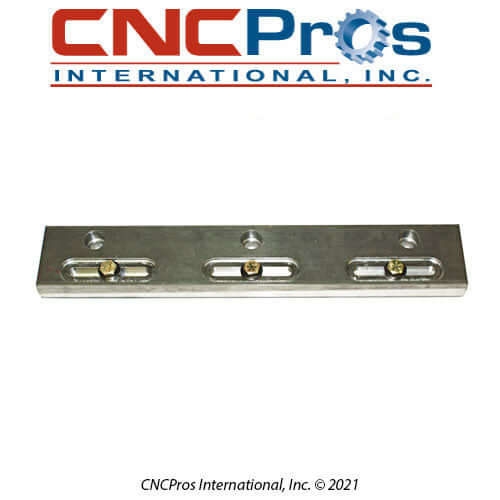

Our replacement Fadal gibs are a critical component for maintaining the integrity and precision of your CNC machine's motion control system. Engineered for durability, these gibs are crafted from robust materials like bronze or steel with a Turcite® interface, ensuring long-term reliability and smooth axis movement.¹ Their function is essential for preserving the machine's geometric accuracy, which directly translates to the high-precision output required for quality part manufacturing.

Technical Specifications and Functionality

These replacement gibs are designed specifically for Fadal CNC machines to replace worn or damaged components. They are key to a machine's slideway system, where they actively reduce friction and maintain precise alignment between moving elements. Properly fitted gibs eliminate backlash and misalignment, which are common causes of machining errors and reduced productivity.

Functioning in tandem with adjustment screws, these gibs provide a stable and secure connection for the moving axes. They ensure that slides travel smoothly along the guideways, minimizing wear and tear while preserving the machine's factory-level accuracy. This stable operation is crucial for withstanding the dynamic loads of demanding machining processes without compromising part quality.

Compatibility and Support

Our gibs are available in a range of sizes to fit select Fadal CNC machine models. To ensure proper fitment for your specific machine, our experienced customer support team is available to assist you. We have over 30 years of experience with Fadal machinery and can help you identify the correct part, minimizing downtime and ensuring a seamless repair.

All our gibs are covered by a 1-year warranty, guaranteeing a new, fully functional replacement part. Our comprehensive inventory ensures that critical components are always available for quick shipping, so you can get your machine back in operation as soon as possible.

Need assistance with selecting the right gib or have technical questions? Our support team is ready to help.

The part number nomenclature for all gibs follows the format GIB-XXXX. This alphanumeric designation is derived from two key specifications: the overall length and the thickness of the tapered side.

• The first digit, represented by the first "X," corresponds to the gib's overall length in inches.
• The final three digits, represented by "XXX," denote the thickness of the tapered side, typically measured in thousandths of an inch (e.g., .550"). This measurement is often scribed directly onto the gib's surface.

For example, a gib with an overall length of 6 inches and a tapered thickness of .550 inches would be designated as GIB-6550. In cases where the thickness is not visibly scribed, a precision measurement of the thinnest section of the taper can be used for identification.

For a comprehensive description, please refer to the accompanying document.
