Product Features
Glentek Universal Spindle Drive
Overview of the Glentek Universal Spindle Drive

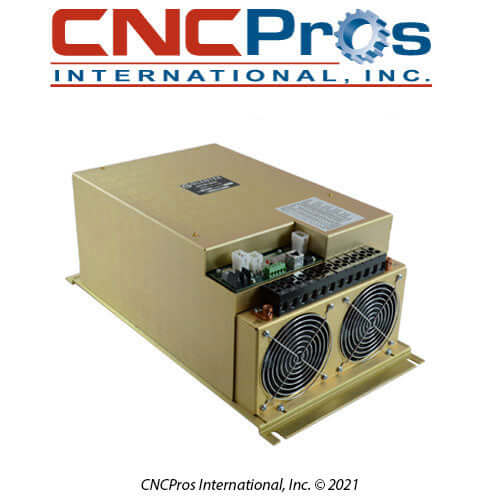

The Glentek Spindle Inverter (Part number: INV-0098) is a universal, drop-in replacement spindle drive for all Fadal CNC machines. It is engineered to enhance the performance of standard three-phase induction motors, supporting a power range of 5hp to 20hp.
How It Works
This drive uses advanced flux vector technology and a Digital Signal Processor (DSP) to create a precise torque feedback loop. This gives the motor performance similar to a servo motor, providing exceptional speed control from standstill to full speed. By continuously calculating and maintaining a 90-degree phase difference between flux and torque vectors, the drive ensures efficient torque control without drawing excessive current.
The Glentek drive can also operate in a sensorless mode, which eliminates the need for external feedback. This mode can be used as a standard inverter or in Variable Frequency Drive (VFD) mode to optimize motor efficiency. With sophisticated mathematical algorithms and state-of-the-art DSP technology, the drive ensures a smooth, steady start by gradually increasing frequency and voltage to efficiently accelerate the motor. This results in enhanced motor performance, greater energy efficiency, and precise speed control for various applications.
Key Features
- Easy Parameter Selection: The drive features a simple switch for selecting preset settings. This eliminates the need for complicated programming and setup, saving you time and effort.
- Simple Operation: You can use the drive right out of the box. No programming is required—simply plug it in and get started. This makes it suitable for both experienced technicians and those new to the technology.
Installation and Configuration
The INV-0098 is designed to be a direct replacement for spindle drives in Fadal Engineering VMCs, requiring no modifications for installation. To configure the drive, simply use the switch to select from the available modes of operation, as detailed in the table below.
Note: Positions C, D, E, and F are reserved for future configurations.
Here's the label on the Spindle Drive.
Select the Drives Parameters with the turn of a switch.
No programming is required.
CNCPros Support and Warranty
Our commitment to quality extends beyond the product itself. The INV-0098 comes with a 1-year warranty covering manufacturing defects and performance issues. Our support team is composed of technical experts with deep knowledge of Fadal systems, ready to assist with installation, troubleshooting, and any inquiries to ensure you get the most out of this critical component.
When you choose CNCPros, you are not just getting a high-quality, OEM-compliant part, but also a dedicated support system built on years of experience with Fadal machinery.
