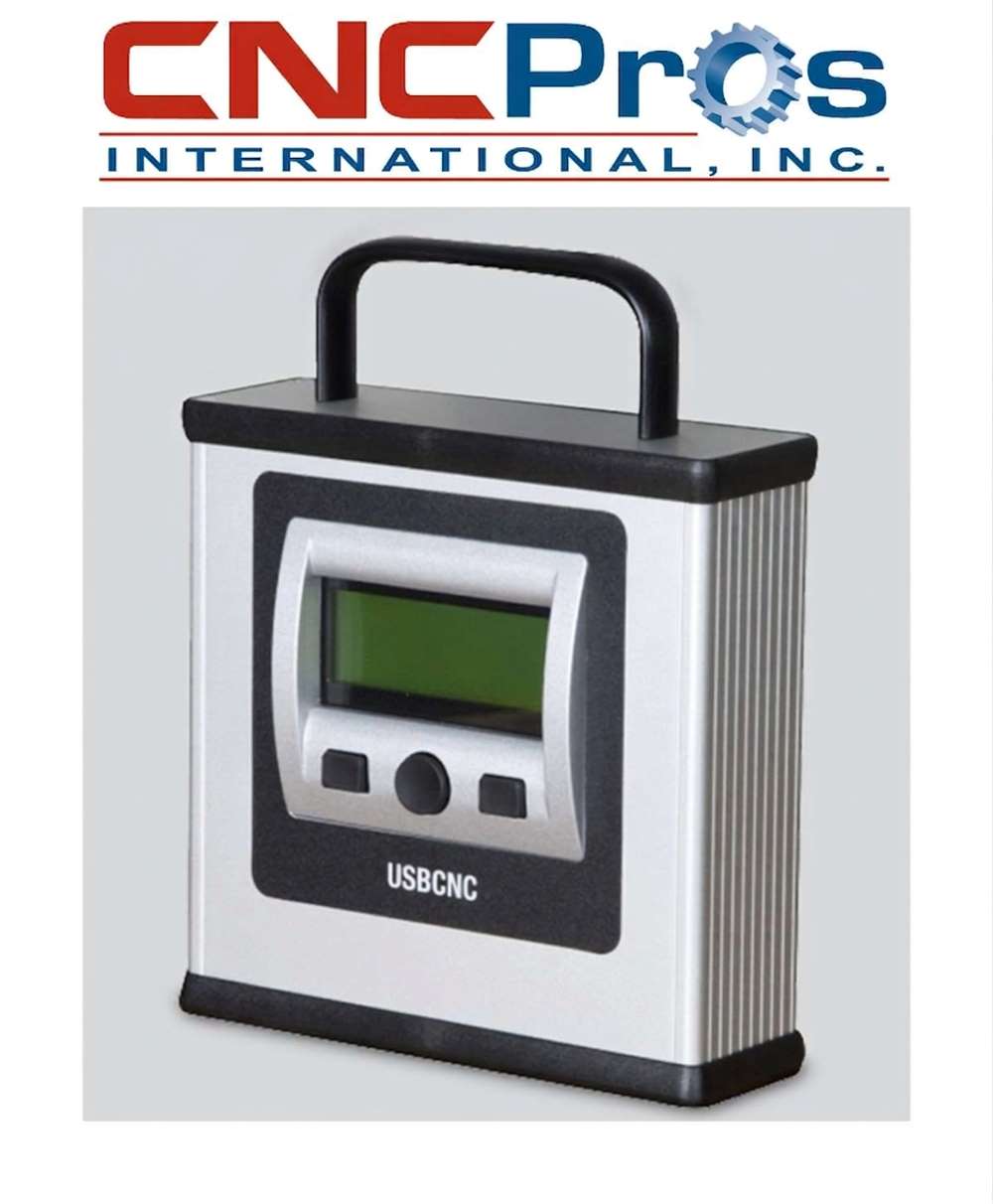

USBCNC-INT UNIVERSAL CONTROL PENDANT MOUNTED USB INTERFACE

How the Universal Pendant Mount USBCNC-INT Works

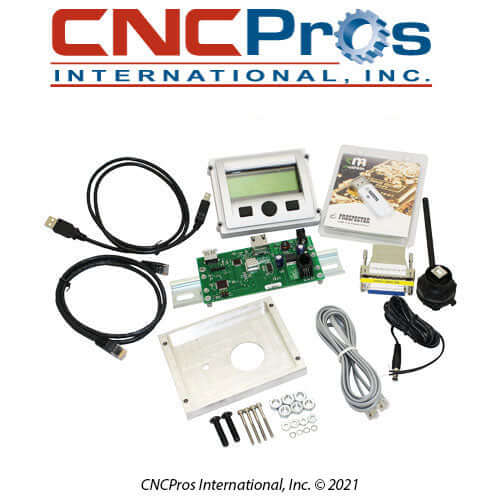

This device, called the USBCNC-INT, is a simple solution for getting your CNC files to and from your machine. It's a small box that connects to your machine's pendant and lets you use a standard USB flash drive.

Instead of needing a computer right next to your machine, you can simply plug in a USB drive to the USBCNC to:

Move files: Easily save programs from your machine onto a USB key or upload new programs from the USB key to your machine.

Run large programs: The device has a feature called DNC (Direct Numerical Control), which lets you run large files that are bigger than your machine's internal memory. It "drip feeds" the file to the machine as it's needed.

The main benefit of this system is that you don't have to keep a computer on the shop floor where it can get dusty or damaged. By putting the USBCNC box near your machine's control panel, you can use shorter cables, which allows for faster and more reliable data transfer. This also means you don't have to walk back and forth between a computer and your machine to start a job.

• USB directory listing
• DNC (drip feed) operation with single button repeat operation
• Tape input for file loading into CNC memory
• Punch CNC memory file to USB key
• Baud rate configurable
• Data bit, parity and stop bit configurable
• Hardware and software flow control
• XMODEM capable
• End of block character control
• Optional end of block delay
• Start of transmission character
• End of transmission character
• 4 line LCD display with adjustable backlight for easy viewing Industrial rated keypad and display
• Input din rail power supply, provides over voltage, over current protection as well as power isolation
